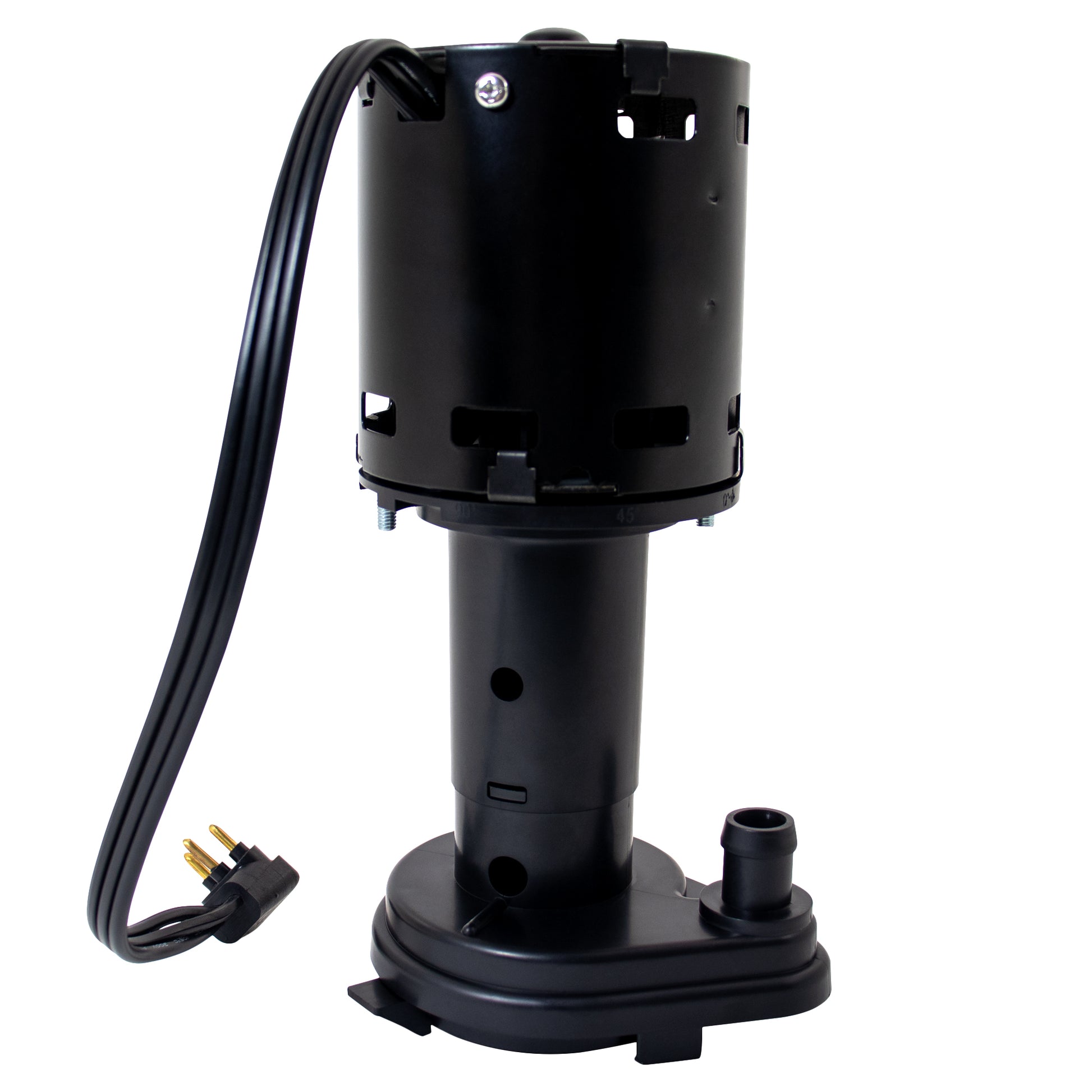

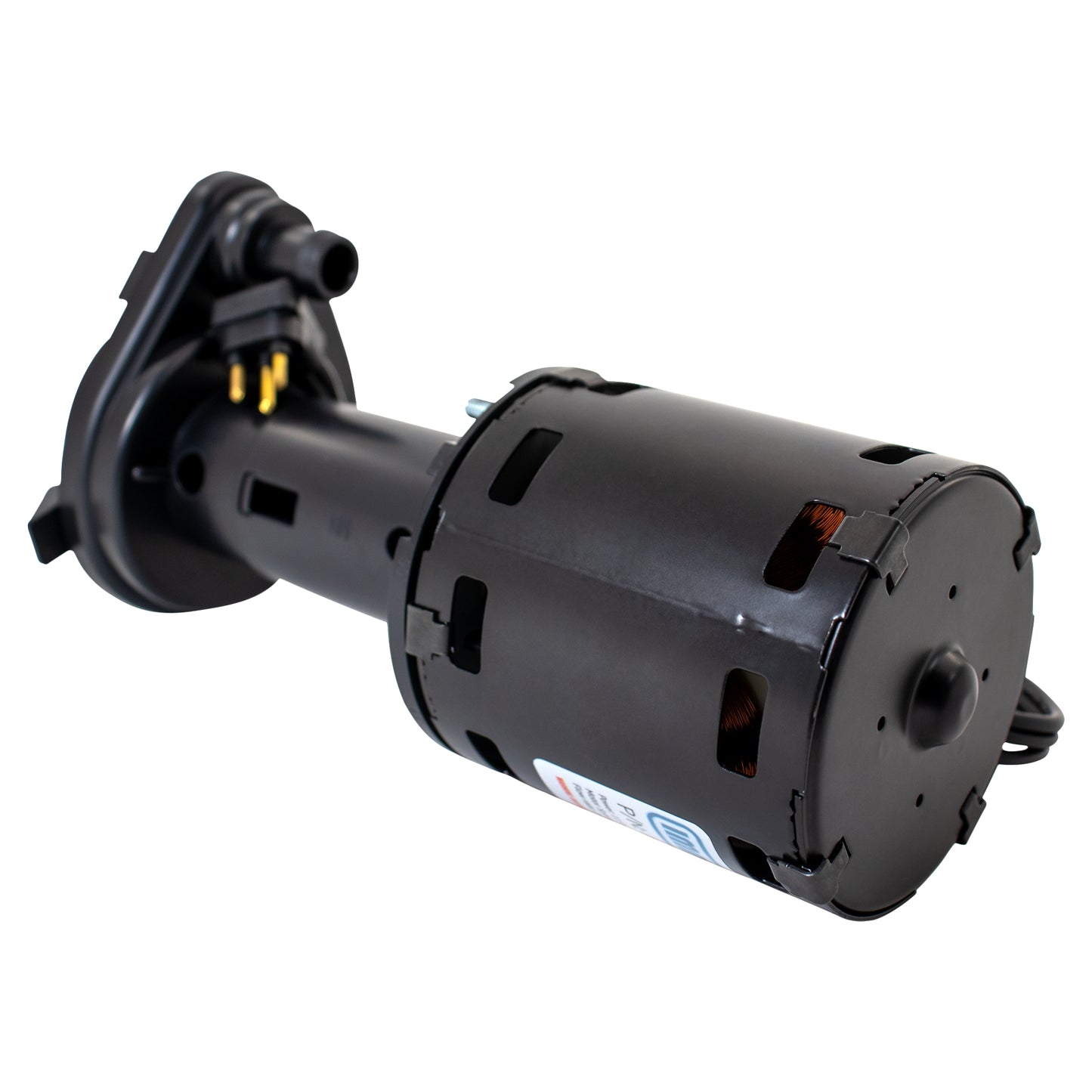

Replacement Ice O Matic 9161076-01 916107601 803338 Water Pump Assembly, 2.53 GPM, 120V

• Direct replacement pump designed as an IMM aftermarket replacement for ICE O Matic 9161076 01 ensuring reliable water circulation and consistent ice production without using an OEM part
• Wide compatibility fits numerous Ice O Matic models including C Series EC Series EUC Series ICE Series and more making it versatile for commercial ice machines
• Efficient water flow water enters through a bottom screen passes through a high speed impeller and exits via a 5/8 inch discharge maintaining proper circulation over the evaporator
• Compact and lightweight design weighs just 3.1 pounds with dimensions 8.5 by 4.5 by 3.5 inches allowing for easy installation and quick servicing
• Durable and easy to maintain engineered for long lasting performance in commercial environments with a simple design that allows for straightforward diagnosis maintenance and replacement

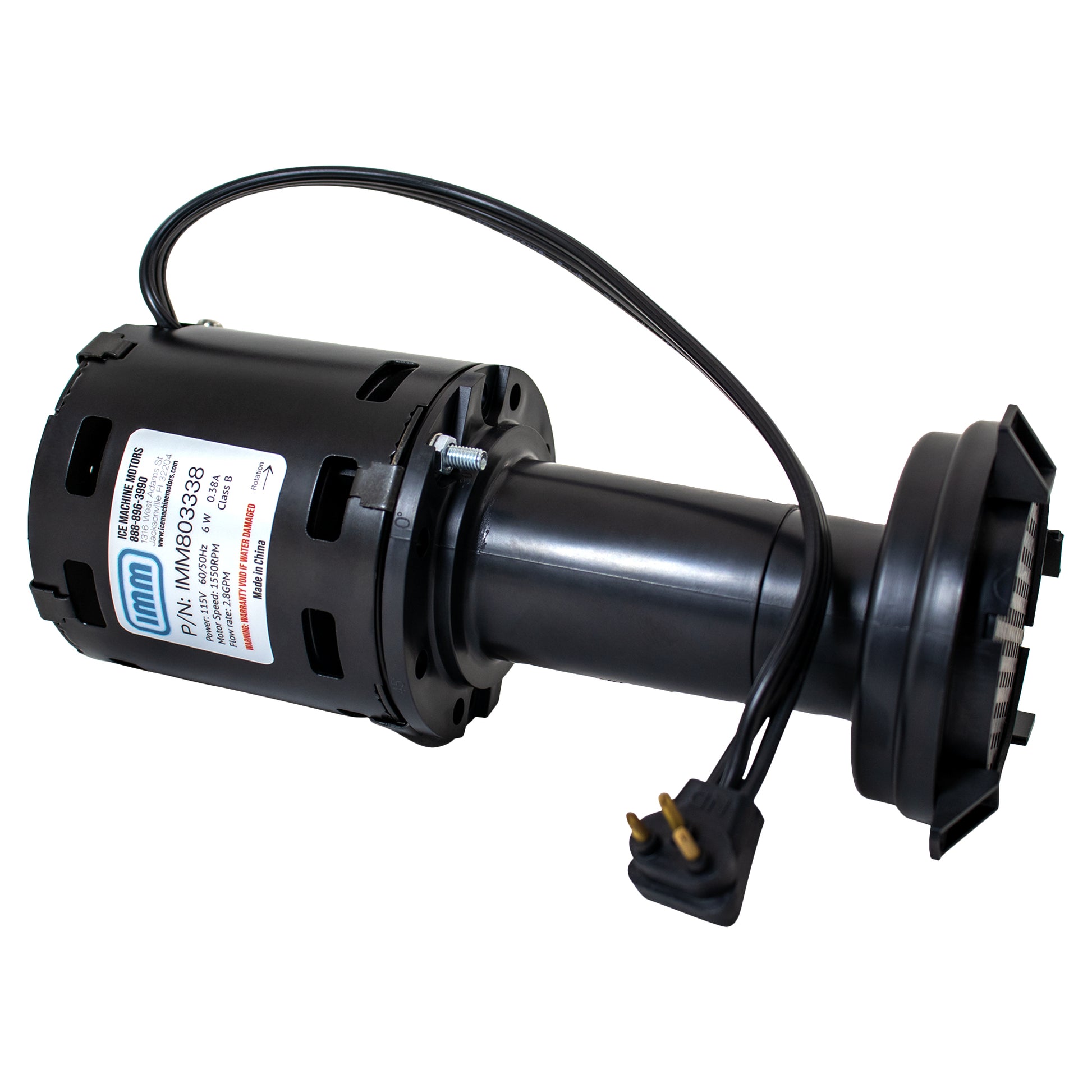

The IMM803338 Replacement Pump for Ice O Matic Ice Machines is a high-quality aftermarket component designed to restore proper water circulation in compatible ice-making equipment. This pump is a replacement only and is not an original Ice O Matic part. It is engineered to match the fit and functional performance of the original pump, providing a reliable and cost-effective solution for maintaining or repairing commercial ice machines. The pump comes close-coupled to the motor and operates at 115 volts with 50 or 60 Hz frequency, making it suitable for many Ice O Matic units. Designed with efficiency and reliability in mind, the pump helps move water through the ice machine system so it can circulate over the evaporator during the ice-making process. Proper water circulation is essential for forming consistent ice cubes and maintaining normal machine operation. The IMM803338 pump features a compact and lightweight design, weighing approximately 3.1 pounds and measuring about 8.5 inches by 4.5 inches by 3.5 inches. Its compact size helps make installation easier and allows the pump to fit properly within the machine housing. The straightforward construction also simplifies troubleshooting, maintenance, and servicing if needed. During operation, water enters through the screen located at the bottom of the pump. The internal impeller spins to increase water speed and pressure, moving the water through the system. The water then exits through a 5/8 inch outer diameter discharge outlet, allowing it to circulate throughout the ice-making system. Please note that this pump is not submersible, and the motor must not be exposed to water. This IMM replacement pump is compatible with many Ice O Matic models including C20, C30, C40, C50, C61, EC200, EC300, EC400, EC500, EUC150, EUC20, EUC200, EUC200B3, EUC20B, ICE0250A, ICE0250W, ICE0320, ICE0400, ICE0400A, ICE0400W, ICE0500, ICE0500A, ICE0500R, ICE0500W, ICE0520, ICE125 S, ICE195 S, ICEU150, ICEU200, ICEU220, and ICEU300 models. This wide compatibility makes it a practical replacement option for technicians and operators maintaining Ice O Matic ice machines in commercial environments.
