Replacement Ice O Matic 9161076-01 916107601 803338 Water Pump Assembly, 2.53 GPM, 120V

• IMM Aftermarket Replacement for ICE-O-MATIC 9161076-01
• This ice machine replacement pump operates at 115 Volts.
• It can operate at either a 50 Hz or 60 Hz frequency.
• The water exits a 5/8 inch Outer Diameter Discharge.
• Lightweight and compact for easier installation.

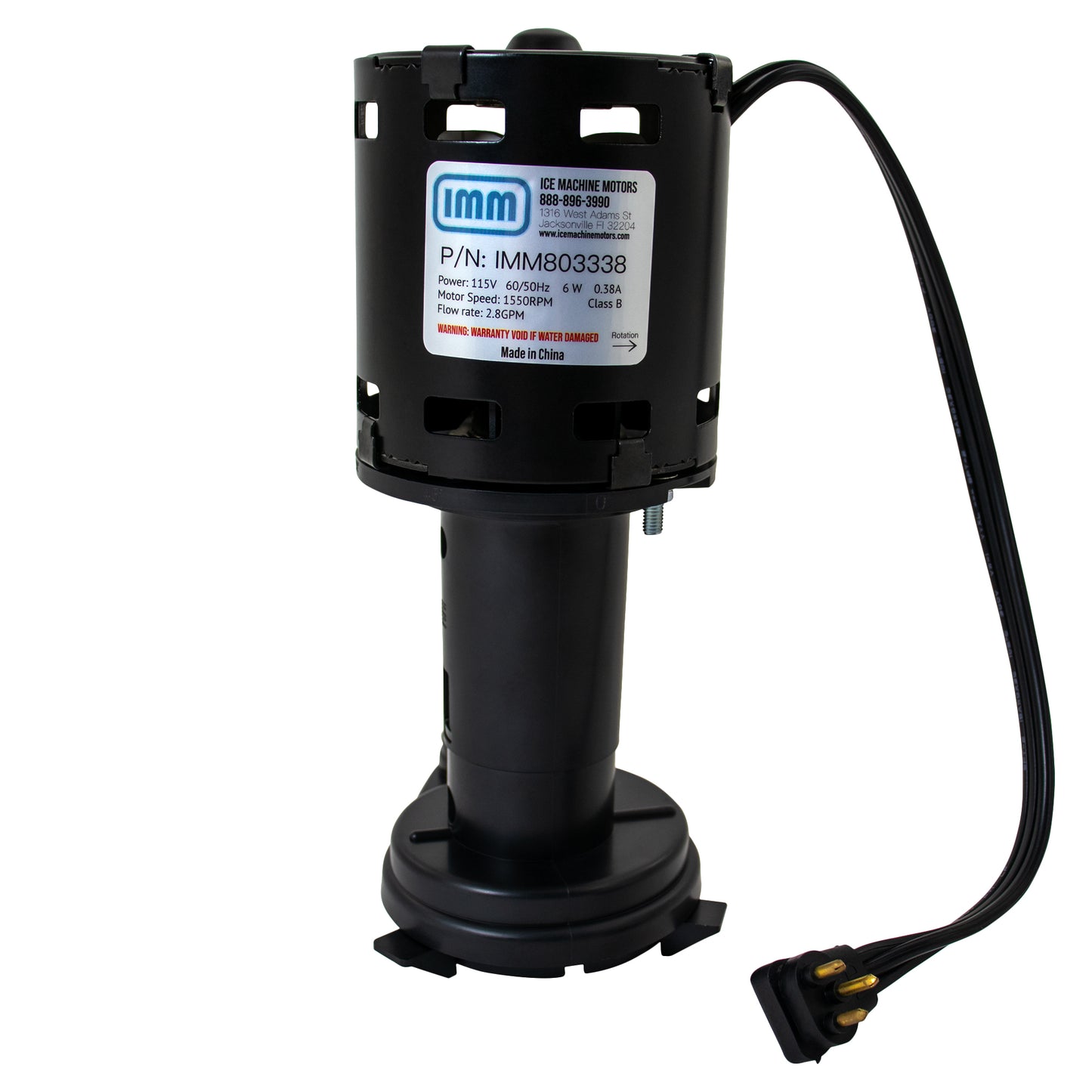

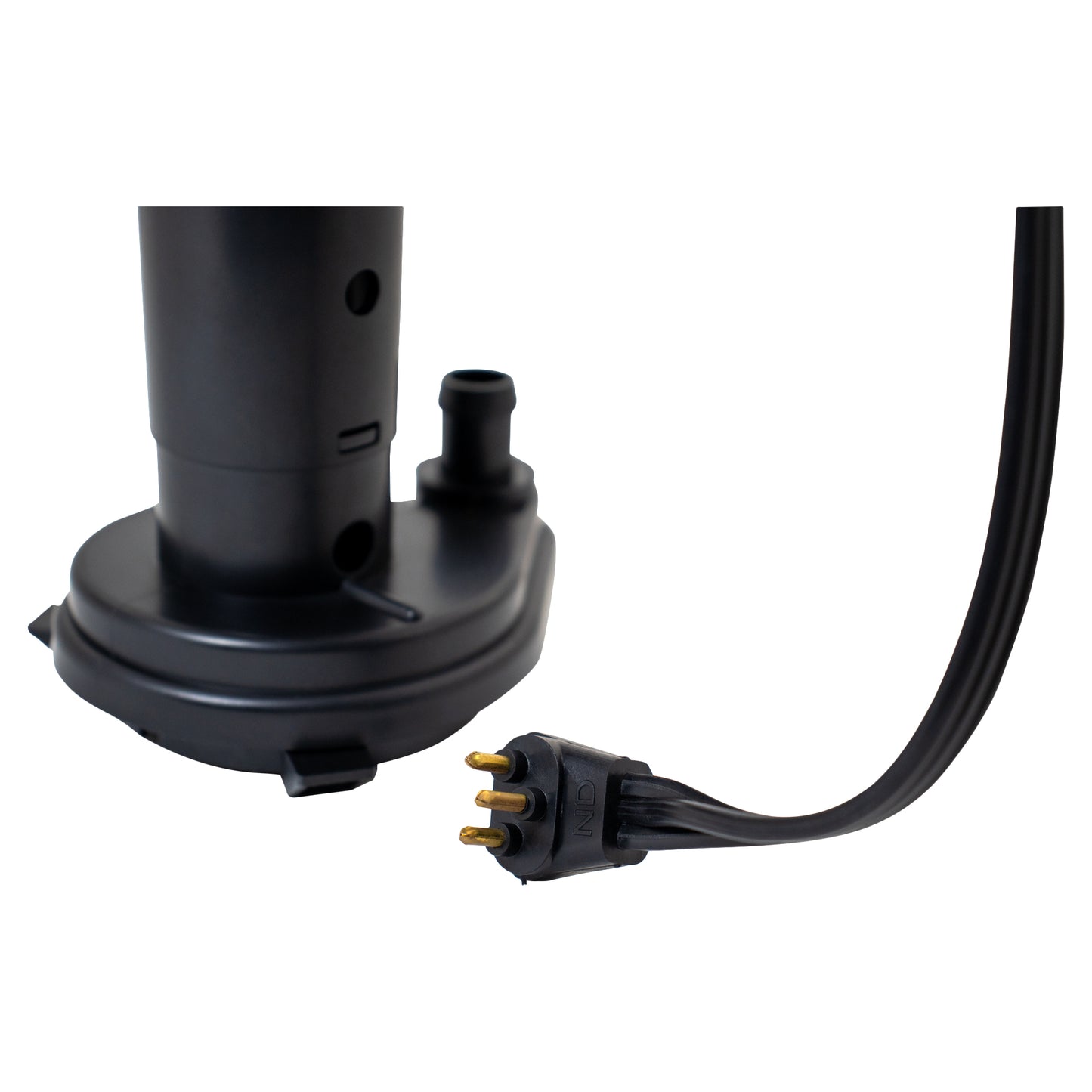

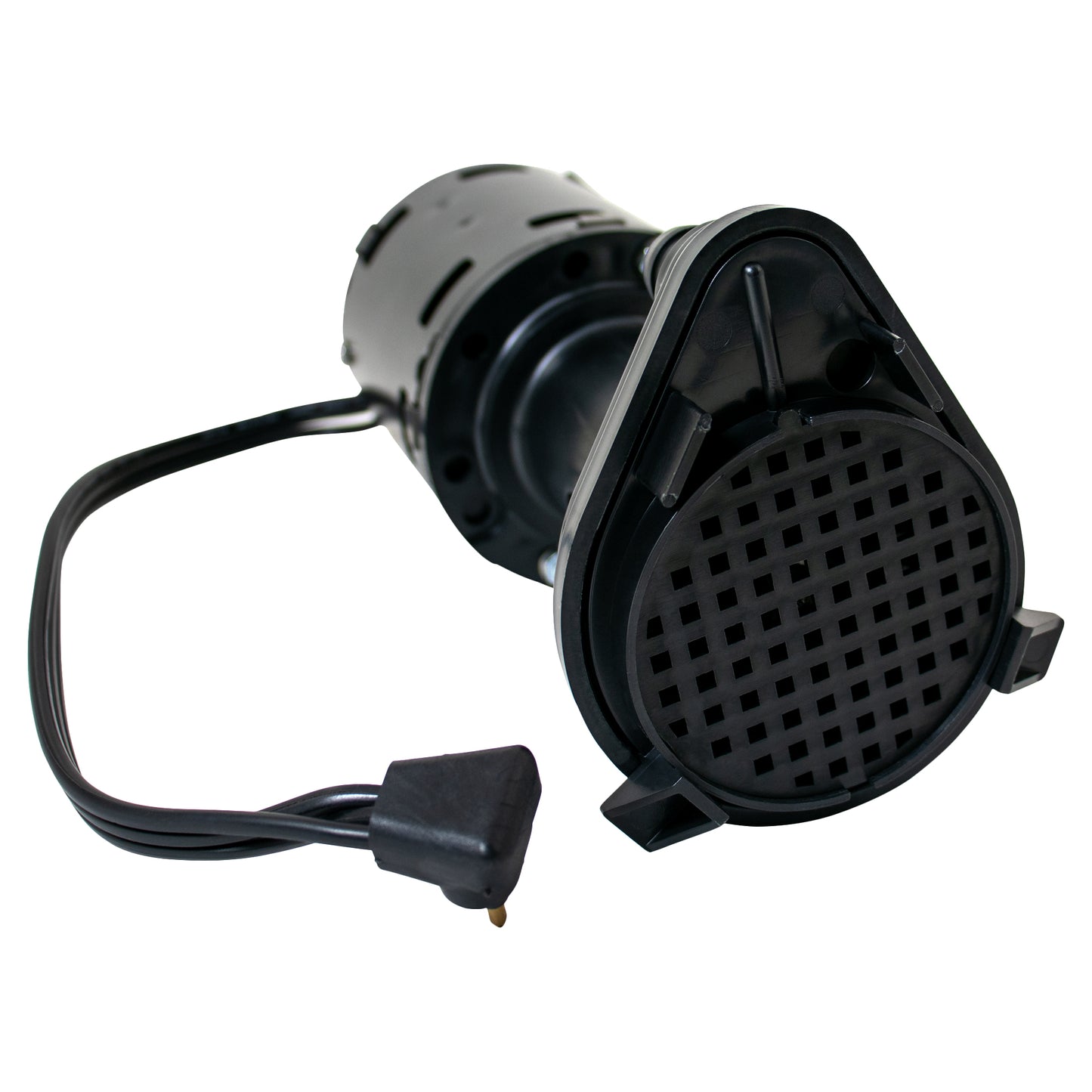

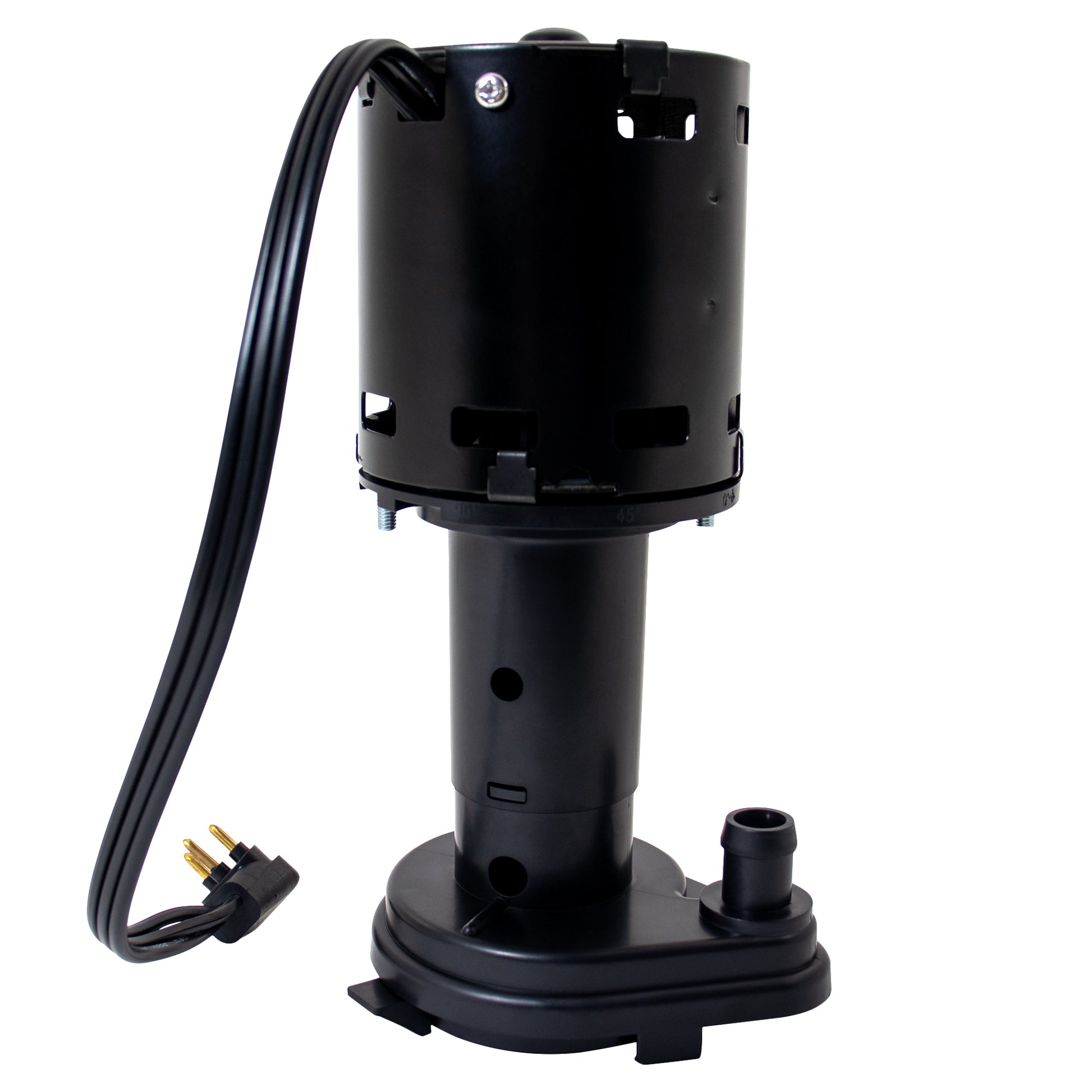

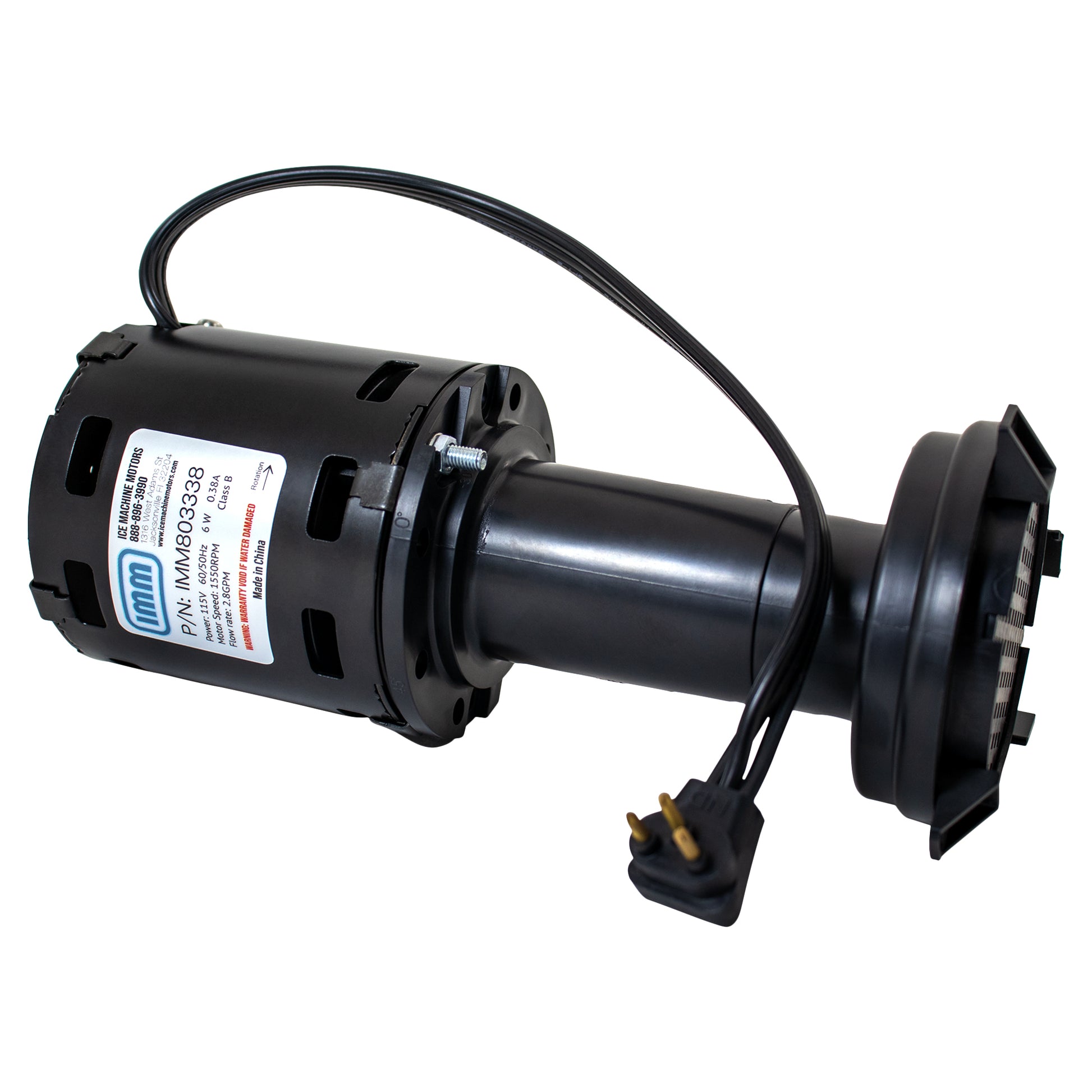

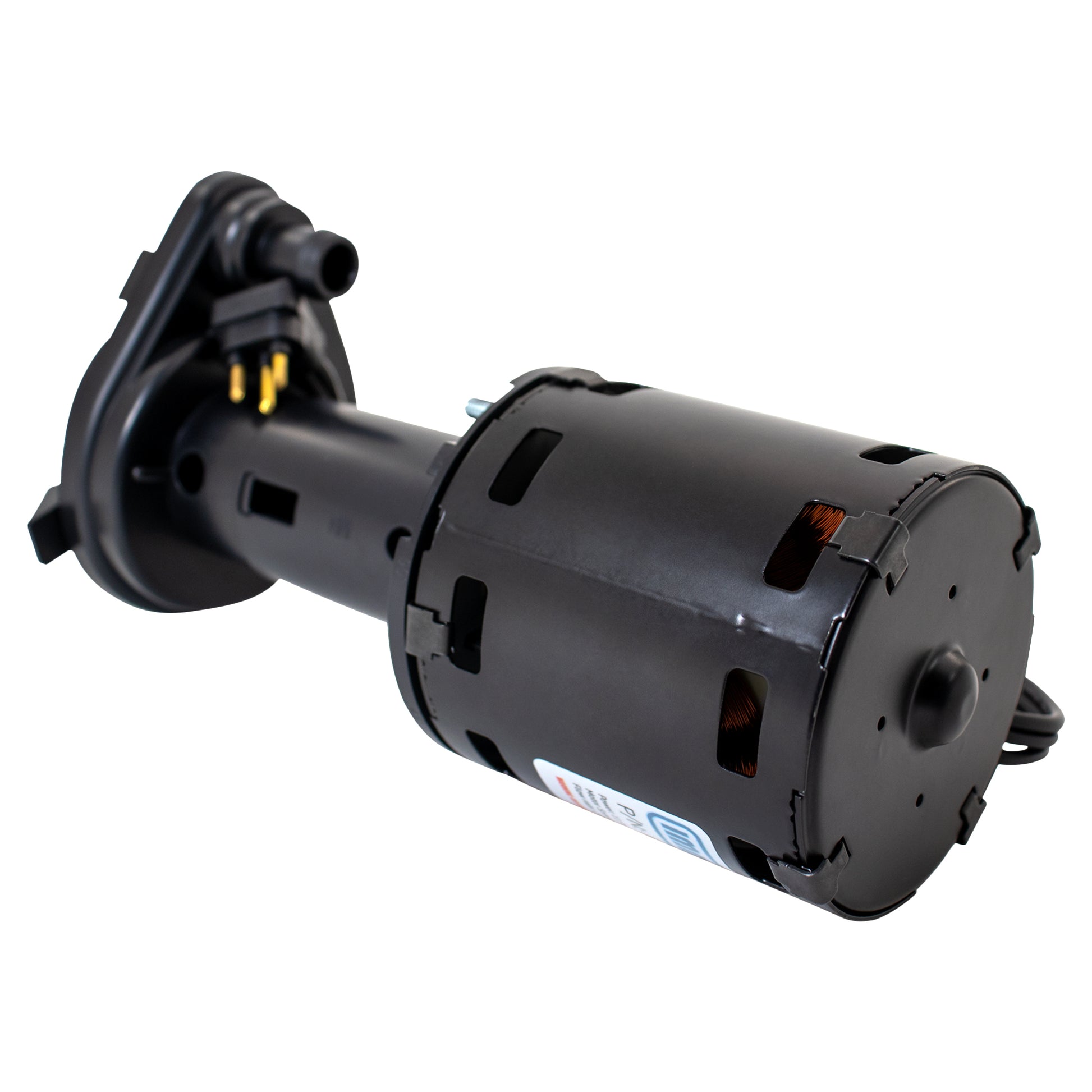

The IMM803338 Ice Machine Pump Replacement is designed to be used as a replacement part if the internal pump in an Ice O Matic ice-making machine fails or is damaged. It comes close-coupled to the motor which operates at 115 Volts and can operate at either a 50 Hz or 60 Hz frequency. The pump itself is lightweight at 3.1 lbs. and compact, at about 8.5†x 4.5†x 3.5†dimensions. This is an important advantage when it comes to a replacement pump because it makes it easier to install and connect to your Ice-O-Matic ice machine. The straightforward and efficient design also allows for easy technical diagnosis and service/maintenance should any problems arise. How it works is simple, the water enters through the screen at the bottom, the impeller spins and increases the speed and pressure, and the water exits through a 5/8 inch outer diameter discharge. Please keep in mind that this is not a submersible pump and the motor should not be exposed to water.

Compatible with the following models:

Ice-O-Matic C20, Ice-O-Matic C30, Ice-O-Matic C40, Ice-O-Matic C50, Ice-O-Matic C61, Ice-O-Matic EC200, Ice-O-Matic EC300, Ice-O-Matic EC400, Ice-O-Matic EC500, Ice-O-Matic EUC150, Ice-O-Matic EUC20, Ice-O-Matic EUC200, Ice-O-Matic EUC200B3, Ice-O-Matic EUC20B, Ice-O-Matic ICE0250A, Ice-O-Matic ICE0250W, Ice-O-Matic ICE0320, Ice-O-Matic ICE0400, Ice-O-Matic ICE0400A, Ice-O-Matic ICE0400W, Ice-O-Matic ICE0500, Ice-O-Matic ICE0500A, Ice-O-Matic ICE0500R, Ice-O-Matic ICE0500W, Ice-O-Matic ICE0520, Ice-O-Matic ICE125-S, Ice-O-Matic ICE195-S, Ice-O-Matic ICEU150, Ice-O-Matic ICEU200, Ice-O-Matic ICEU220, Ice-O-Matic ICEU300
